Juice w/ Attitude CTS4 - Edge Products - 31501-4

The Edge Juice with Attitude CTS4 is the ultimate inline performance module and digital monitor combination for Dodge Ram trucks equipped with Cummins diesel engines. Combining Edge's legendary Juice performance with the next-generation CTS4 monitor, this all-in-one system delivers substantial horsepower and torque gains, on-the-fly adjustability, advanced engine monitoring, and built-in safety features for daily driving, towing, and performance. Power gains and available features vary by model year and application.*

What sets the Juice with Attitude CTS4 apart is the ability to change between multiple power levels on the fly, allowing you to adjust performance without stopping to reflash the truck. Whether you need additional pulling power with a trailer behind you, improved response for everyday driving, or maximum available performance, the Juice puts control directly at your fingertips.

Built-in safety backdowns add another layer of protection by monitoring critical operating conditions and automatically reducing power when user-defined limits are reached. This makes the Juice with Attitude an excellent choice for Cummins owners who want increased performance while keeping a close eye on their truck. Compatible EAS sensors, including EGT monitoring, can further expand the system's monitoring and safety capabilities.

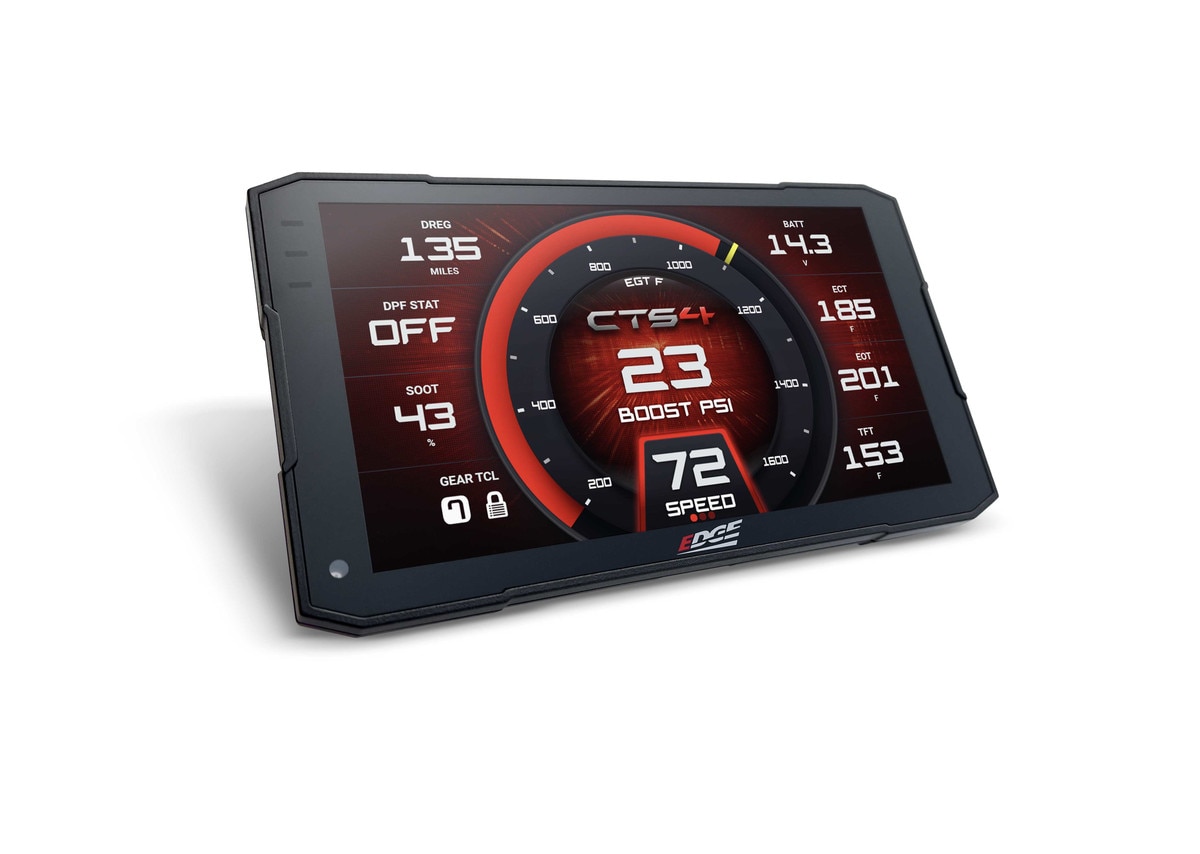

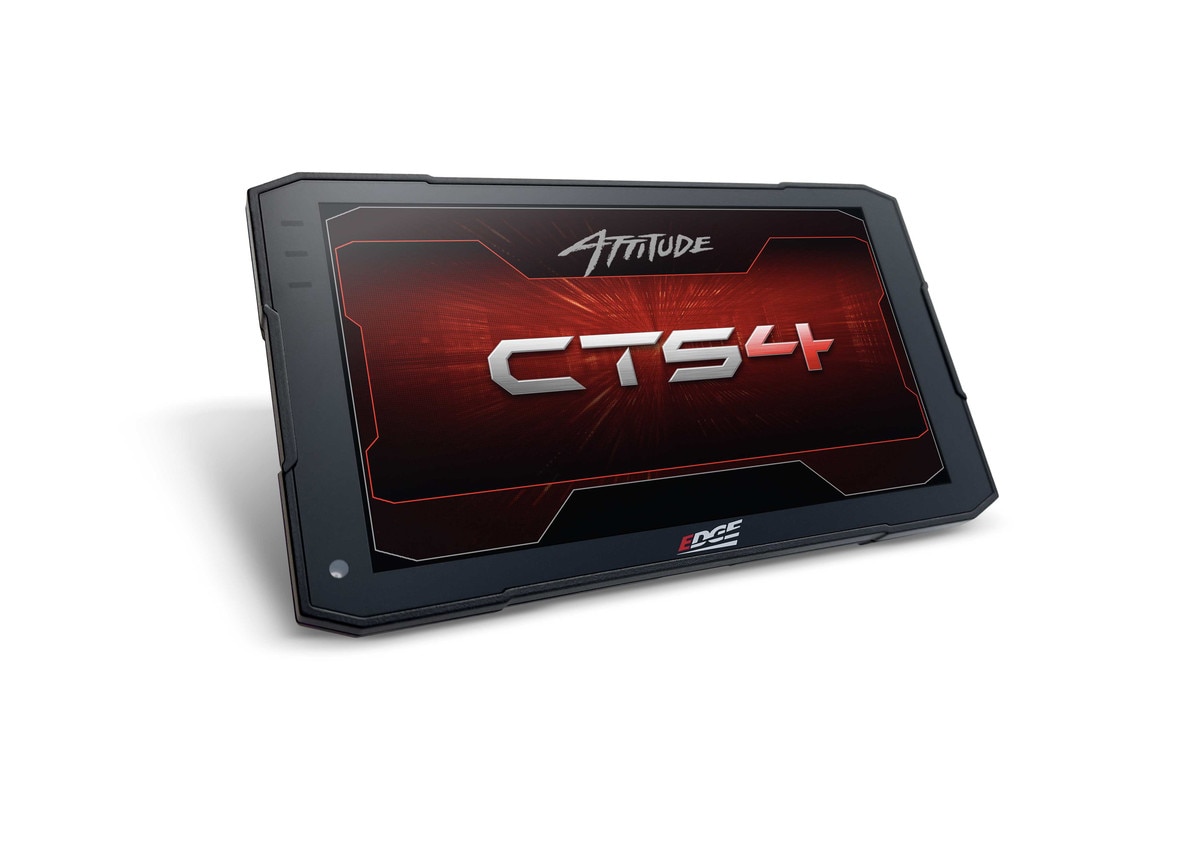

The Attitude CTS4 digital monitor provides real-time access to supported engine, drivetrain, temperature, pressure, and other critical vehicle parameters through customizable digital gauges. Set custom alerts and warnings, log vehicle data, monitor performance, and read and clear supported diagnostic trouble codes directly from the CTS4. Compatible EAS sensors and camera options allow the system to expand as your truck and monitoring needs evolve.

More power. On-the-fly control. Smarter monitoring. Take Control with Juice with Attitude CTS4.

*Horsepower and torque gains, available power levels, Hot Unlock availability, monitored parameters, safety features, and functionality vary significantly by model year, engine, and vehicle application. Always verify specific features and power gains for your vehicle before purchase.

• Five Available Power Levels - Level 1 40hp/150tq, Level 2 60hp/200tq, Level 3 80hp/250tq, Level 4 100hp/300tq, Level 5 120hp/350tq
• Hot Unlock Available - Add Level 6 Hot Unlock through a simple internet update for up to 150hp/380tq gains with more fuel and RPM
• On-the-Fly Power Adjustments - Change between available Juice power levels directly from the CTS4 without stopping to reflash the truck.
• Built-In Safety Backdowns - Enable or disable supported backdown settings to automatically reduce power when critical operating parameters reach user-defined limits.
• EGT Probe Included - Monitor exhaust gas temperature in real time and set a maximum EGT setpoint to help protect your Cummins when towing or putting the added power to work.
• Fuel Pressure Sensor Included - Keep an eye on fuel pressure directly through the CTS4, providing valuable information about fuel system operation.
• Cold Engine Defuel Control - Enable or disable Cold Engine Defuel to limit added performance until the engine reaches an appropriate operating temperature.
• Adjustable Boost Setpoints - Choose from Boost Setpoint Levels 1-5 on supported applications to tailor boost control to your performance needs.*
• Turbo Timer - Enable a turbo timer using either EGT-based or time-based settings to help manage turbocharger cooldown after driving.
• Tire Size Adjustment - Adjust supported tire size settings from 1-50 inches to accommodate changes to your truck's tire configuration.*
• Built for Daily Driving, Towing and Performance - Multiple power levels let you dial back performance for everyday use or add substantial horsepower and torque when towing, hauling, or looking for maximum available power.
• Customizable Digital Gauges - Monitor supported EGT, fuel pressure, boost, engine, drivetrain, temperature, pressure, and other critical parameters from one centralized display.
• Custom Alerts and Data Logging - Configure alerts and warnings for supported parameters and record operating data for performance monitoring, towing, and troubleshooting.
• Built-In Diagnostics - Read and clear supported diagnostic trouble codes directly from the CTS4.
• Simplify VP44 Installation - For applicable VP44-equipped trucks, add the optional EAS VP44 Tap Cap (P/N 98624) for an easier, cleaner pump-wire connection.
• *Horsepower and torque gains, available power levels, Hot Unlock availability, boost control, tire size adjustment, safety features, monitored parameters, and functionality vary by model year and vehicle application.

• 2001 Dodge Ram 2500 5.9L DIESEL
• 2001 Dodge Ram 3500 5.9L DIESEL
• 2002 Dodge Ram 2500 5.9L DIESEL
• 2002 Dodge Ram 3500 5.9L DIESEL
